Yield GET

The Yield API endpoint provides mean values of the specific yield calculations and detailed specific yield data for photovoltaic (PV) systems based on their site's location and installation characteristics. This endpoint supports GET requests that require latitude, longitude, as well as the slope and orientation of the PV system. By default, this endpoint calculates the specific yield for the years 2015 to 2024. Extended data up to the year 2007 is available as an add-on.

INFO

For users on the free plan, access is limited to mean specific yield values calculated over the past 10 years only; no detailed information about individual years, confidence intervals, or any other additional data is provided.

Base URL

The Base URL for this endpoint is:

https://api.pvnode.com/v1/yield/

Example Request

The following examples demonstrate how to pass the required parameters and include the API key for authentication. The example uses a slope of 30 degrees, an orientation of 180 degrees (south-facing), and the location is set to Rosenheim, Germany with coordinates latitude: 47.84812, longitude: 12.06231.

import requests

url = 'https://api.pvnode.com/v1/yield/'
body = {
    "latitude": 47.84812,
    "longitude": 12.06231,
    "slope": 30,
    "orientation": 180
}
headers = {
    'Authorization': 'Bearer ' + YOUR_API_KEY
}
response = requests.get(url, headers=headers, params=body)
data = response.json()

Rate-Limits

The Rate-Limits for this endpoint are 6 requests per minute. If more requests are sent, a 429 response is returned.

Required parameters

Parameter	Type	Description
latitude	float	Latitude of the site's location.
longitude	float	Longitude of the site's location.
slope	float	Slope of the PV array in degrees, ranging from 0 to 90.
orientation	float	Orientation of the PV array in degrees from north. 180 is south, and 270 is west.

Optional parameters

Parameter	Type	Description
pv_power_kw	float	Standard test condition (STC) power in kWp of the first PV array. Must be specified if second_array_power_kw > 0. Default is 0.
detailed_losses	boolean	If this parameter is set, detailed losses like DC to AC conversion losses, snow losses and others are returned. Default is False.
pv_technology_type	string	PV model used for spectral mismatch calculations. Options include monosi, multisi, cdte, perc and topcon. Default: perc.
temperature_coefficient_power	float	Temperature coefficient (%/K) of PV module efficiency. Default is -0.42.
diffuse_radiation_model	string	Model used for diffuse radiation calculations. Options include perez and haydavies. Default: haydavies.
panel_age_years	float	Age of the PV modules in years. Assumes a degradation of 0.5% per year. Default is 1.
elevation	float	Height above sea level in meters. Default is -999, which uses elevation from high-resolution terrain data.
installation_height	float	Installation height of the PV array. Default is 0.
mounting_type	string	Mounting type of the PV array: open (open mounting), isol (isolated back, close rooftop installation), or mix. Default is open.
ground_albedo	float	Ground albedo, ranging from 0 to 1. Default is 0.2.
ground_coverage_ratio	float	Ground coverage ratio for row shading, typically ranges from 0 to 1. Default is 0 (no row shading). GCR calculator
tracker_system_type	int	Tracker system configuration: 0 (no tracking), 1 (one-axis tracker), or 2 (two-axis tracker). Default is 0. Only applies on the first string.
single_axis_tracker_config	string	Configuration details for a one-axis tracker. Detailed description.
inverter_clip_max_threshold_percent	float	Percentage limit for AC output as a percentage of the nominal power (of the PV array). Default: 120.
inverter_clip_min_threshold_percent	float	Minimum AC output as a percentage of the nominal power (of the PV array). Default: 0.1.
sky_obstruction_config	string	Configuration that covers the sky dome obstructions (like mountains). Detailed description.
terrain_based_horizon_coverage	bool	If activated, the horizon cover is obtained from our high precision terrain data. Default is false.
shading_config	string	Shading configuration for the first PV array. Default is '', indicating no shading considered. Detailed description.
snow_slide_coefficient	float	Coefficient used for snow calculations on PV arrays. Recommended to use 0.1-0.3 for rooftop installations and 0.3 - 0.6 for open mounting. Default: 0.14.
enable_soiling_model	boolean	Determines whether a soiling model is calculated and considered. Default: false.
soiling_model_config	string	Configuration parameters for soiling model. Default: 2:2:0.11:0.5. Detailed description.
second_array_slope	float	Slope of the second PV array in degrees, ranging from 0 to 90. Must be specified if second_array_power_kw > 0.
second_array_orientation	float	Orientation of the second PV array in degrees from north. 180 is south, 270 is west. Must be specified if second_array_power_kw > 0.
second_array_ground_coverage_ratio	float	Ground coverage ratio for the second PV array. Default is 0. GCR calculator
second_array_shading_config	string	Shading configuration for the second PV array. Default is '', indicating no shading considered. Detailed description.
second_array_power_kw	float	STC power in kWp of the second PV array. Requires pv_power_kw > 0.
prefer_american_satellites	boolean	Specifies whether to use American satellite regions when two regions overlap. Available only for overlapping regions in America.
include_historical_data	boolean	Indicates whether data extending back to 2007 is used. Available only as an add-on.
historical_data_start_year	integer	Specifies the starting year for data if include_historical_data is enabled.

Additional Notes

Ground Coverage Ratio for intra row shading

The Ground Coverage Ratio (GCR) quantifies the density of solar panels within a given area and is calculated using the formula:

$$\text{GCR}=\frac{\text{L}}{\text{R}}$$

where:

• $\text{L}$ represents the length of the solar panel array.
• $\text{R}$ is the distance between consecutive rows of panels.

GCR Calculator

Please use our GCR calculator to calculate the GCR for your site.

Enter the length of the PV array (L):

Enter the row distance (R):

The Ground Coverage Ratio (GCR) is: 0.00

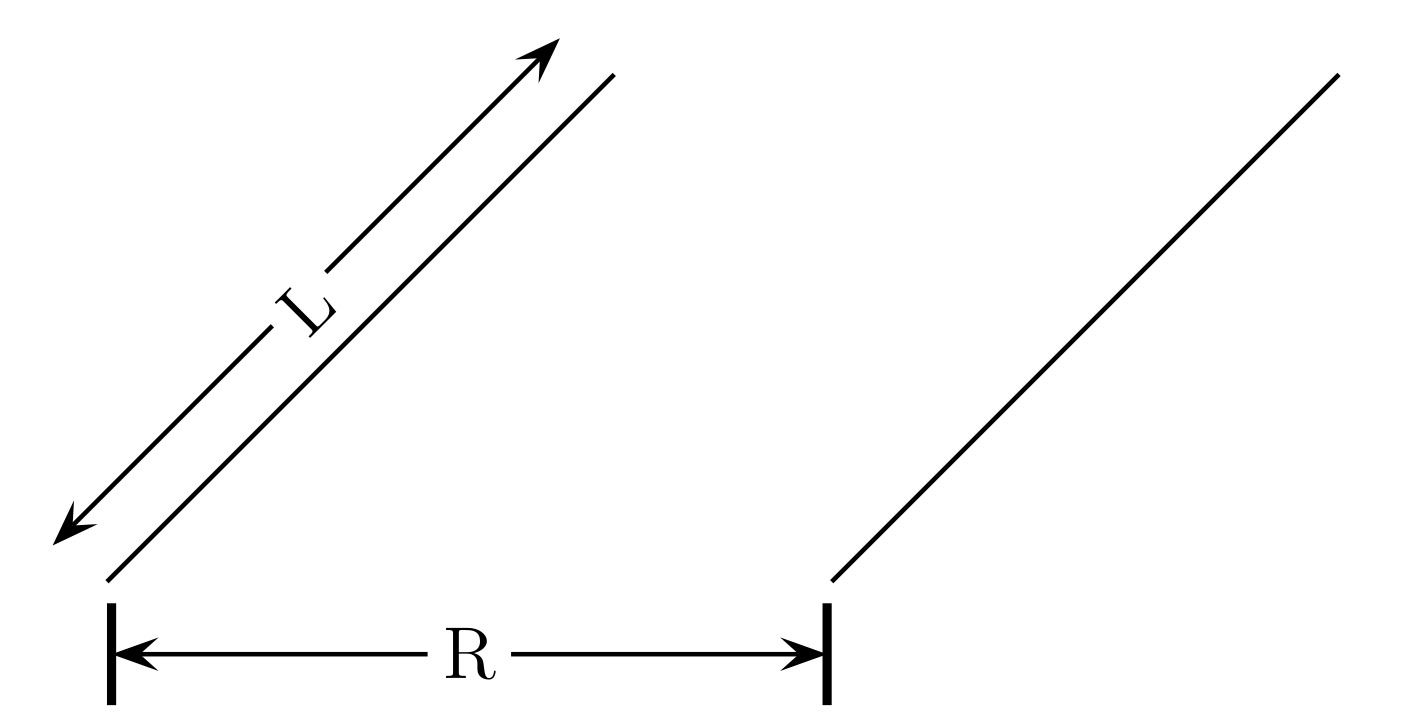

GCR visualized

The GCR helps in understanding how tightly panels are packed on the installation site, influencing potential shading and energy production efficiency.

Tracker configuration of the PV Array

The tracker1config parameter specifies the configuration of a one-axis solar tracker using four values separated by colons :.

• Axis Azimuth (degrees): Specifies the compass direction of the tracker's axis of rotation, ranging from 0 to 360 degrees. A value of 180 indicates south, with increasing angles moving towards the west.
• Axis Tilt (degrees): Defines the tilt of the tracker’s axis relative to the horizontal plane, ranging from 0 to 90 degrees.
• Maximum Rotation Angle (degrees): Sets the limits of the tracker's rotation, from 0 to 90 degrees. Negative angles equal in magnitude are implicitly included, allowing movement in the opposite direction.
• Backward Tracking (boolean): The T (true) or F (false) value indicates whether the tracker employs backward tracking to prevent row shading during mornings and evenings.

single_axis_tracker_config = "180:0:90:T"

This configuration describes a one-axis tracker with:

• Axis oriented south (180 degrees).
• No tilt (0 degrees).
• Capable of rotating from -90 to +90 degrees.
• Backward tracking enabled.

Sky Obstruction Configuration

• sky_obstruction_config: This parameter configures obstructions that block parts of the sky dome, such as buildings, trees, or mountains. Configurations are represented by strings of three integers separated by colons :, with up to 10 such strings concatenated using underscores _.
• Each string specifies:
  • Start Azimuth Angle: The beginning angle in degrees from north where the obstruction starts.
  • End Azimuth Angle: The angle in degrees from north where the obstruction ends.
  • Elevation Angle: The maximum angle in degrees above the horizon that the obstruction covers.

Example Configurations:

• sky_obstruction_config = 0:90:20 describes an obstruction covering the north to east segment of the sky from 0° to 20° elevation.
• sky_obstruction_config = 0:90:20_180:270:30 extends the coverage to include both the north-eastern segment from 0° to 20° elevation and a south-western segment from 0° to 30° elevation.

Shading Configuration

• shading_config: This parameter defines the shading on the PV array throughout different times of the day and seasons, using strings of four integers separated by colons :.

• Each integer represents shading as a percentage (multiplied by 10) for each season—winter, spring, summer, and autumn.

• Strings are concatenated using underscores _ to represent different times of the day:

  • Morning (6 AM - 10 AM): Defined by the first set of numbers, e.g., 7:2:3:1 indicates 70% shading in winter, 20% in spring, 30% in summer, and 10% in autumn.
  • Midday (11 AM - 2 PM): Defined by the second set of numbers, e.g., 1:1:0:0 indicates 10% shading throughout winter and spring, with no shading during summer and autumn.
  • Afternoon/Evening (3 PM - 8 PM): Defined by the third set of numbers, e.g., 0:0:0:0 would mean that no shading occurs between 3 PM and 8 PM in any season.

Example Configuration:

• shading_config = 7:2:3:1_1:1:0:0_0:0:0:0 indicates varying levels of shading across different times and seasons:
  • Strong morning shading in winter (70%), decreasing to no shading by the evening.
  • Consistent mild shading at midday in winter and spring (10%), with none in the hotter months.

Soiling Configuration

• soiling_config: This parameter consists of four values (separated by colons :) that define the soiling behavior of the PV modules.

  • Cleaning Time Window: The first value represents the number of hours that define the cleaning time window. This is the period during the day when cleaning can occur.
  • Rainfall Threshold: The second value is the amount of rainfall in mm required within the cleaning time window to trigger a complete cleaning of the modules. If less rain falls, no cleaning occurs.
  • Deposition Velocity (2.5 μm): The third value is the deposition velocity of particles with a size of approximately 2.5 μm, measured in cm/s. This determines how quickly these particles accumulate on the module surface.
  • Deposition Velocity (10 μm): The fourth value is the deposition velocity of particles with a size of approximately 10 μm, measured in cm/s.

• Default: 2:2:0.11:0.5

This default configuration indicates a 2-hour cleaning window, requiring 2 mm of rainfall for cleaning. It also sets the deposition velocities for 2.5 μm and 10 μm particles to 0.11 cm/s and 0.5 cm/s, respectively.
